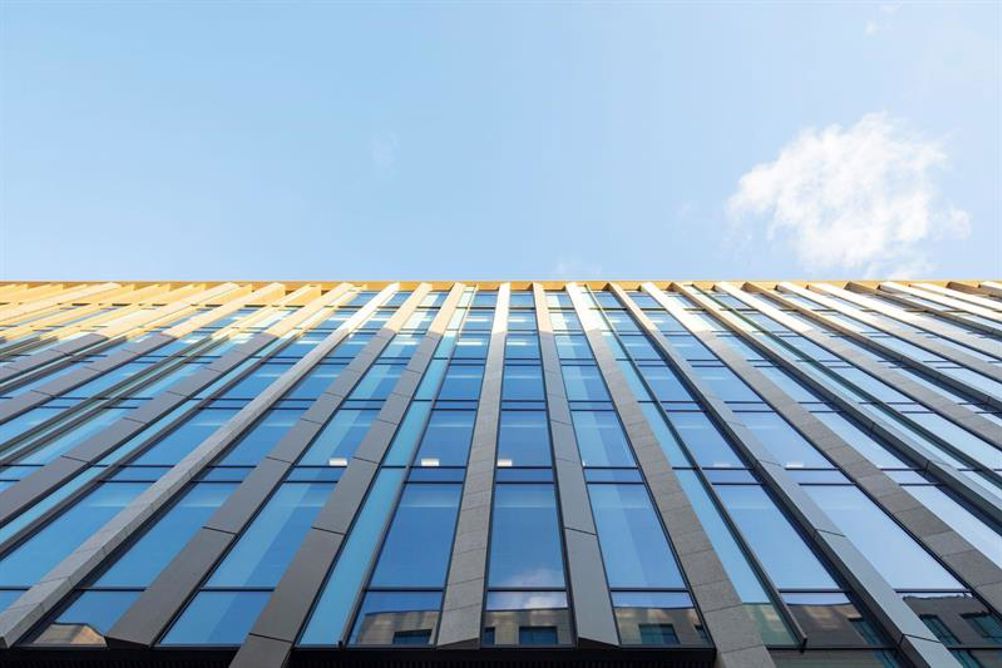

In a construction market still reeling from the tragic Grenfell Tower fire in 2017, the resulting Speedpanel A2 Glass and Speedpanel A2 Aluminium carry an independently certified fire rating of A2-s1 d0, creating a huge USP for the company and opening up vast market potential in both new build and replacement façade projects.
“Unfortunately, many spandrel panel manufacturers still state that their products are fire-rated to A1 as they make their products from A1-rated materials,” says Fraser Brown, regional director at Speedclad. “In truth, however, once these materials combine to form a composite panel, any individual material fire rating doesn’t mean the A1 rating still stands.”
Speedpanel insulated composite panels use adhesives to bond various materials together. However, achieving the required A2-s1 d0 fire rating for the panel is challenging, as many adhesives feature solvents, isocyanates or PVC, all of which are highly flammable.
“For this reason, we opted to partner with Henkel to develop a panel construction using a flame-retardant adhesive,” states Fraser. “As a result of our collaboration we now have a suite of industry-first aluminium and glass-faced spandrel panels that have been independently tested by Warrington Fire to achieve A2-s1 d0, in accordance with BS EN 13501-1 2018, thus giving specifiers, clients and contractors complete peace-of-mind. Moreover, compared to fitting a conventional double-glazed unit - with its supplementary insulation and associated framework - Speedpanel is far quicker.”
In November 2018, the government announced changes to Regulation 7 of the Building Regulations in order to ban the use of combustible material in the external walls of certain high-rise buildings in England. It states: “Building work shall be carried out so that materials which become part of an external wall, or specified attachment, of a relevant building are of European Classification A2-s1 d0 or Class A1 classified.”
Generally, all materials should comply with a minimum fire classification of A2 s3 d2. However, if a building falls within the ‘relevant building’ class, this fire classification is redundant and all materials need to be A2-s1 d0 rated, effectively a higher level of classification. ‘Relevant buildings’ include residential and institutional buildings that are more than 18m high.
“Making a non-combustible product that complies with A2-s1 d0, particularly one that relies on adhesives, is a tall order,” says Fraser. “We have only managed to overcome this difficulty by working in partnership with expert companies like Henkel.”
In terms of composition, Speedpanel A2 Glass features a steel rear tray, an insulated (mineral wool) core, a proprietary interlayer and a glass front face that is available in the full grey scale from white to black. The same composition applies to Speedpanel A2 Aluminium (powder coated or anodised in a wide range of colours), minus the specialist interlayer. Any composite panel built of several materials and sold as a single panel - even if the materials are individually A1 fire-certified (as is the case with Speedpanel) - will require re-certification as the complete panel.
“We initially considered mechanically fixing the front and back trays using non-combustible fasteners, although this was dismissed due to the negative impact on thermal bridging and the potential for condensation issues,” explains Fraser. “As a result, we chose adhesives to bond the components together, but there were many challenges to overcome beyond just being flame-retardant.”
Although heat-soak-tested toughened glass is up to five times stronger than normal glass, a particularly heavy impact can force it to shatter into thousands of tiny ‘pebbles’. It is the cracks between these pebbles that create stress on the adhesive, which means the glass could potentially fall from the building.
“We wanted to create a product where this outcome could not occur; where the glass would remain in place even in the unlikely event of a heavy impact,” says Fraser. “I’m pleased to say that our partnership with Henkel and the extensive adhesive trials helped us to meet this objective. A2-s1 d0 classification is really important, but so is glass retention.”
Speedpanel approached several leading adhesive manufactures. Although a number were prepared to offer solutions that ‘might’ succeed, Henkel differentiated itself by working with Speedpanel to understand the particular requirements of the application. Henkel’s expert technical team set about analysing the task in hand with the aim of delivering the optimum adhesive.
“The research was two-fold, in terms of identifying which adhesive from the Henkel portfolio would best suit our needs for both fire classification and grab strength,” explains Fraser. “They succeeded on both counts.”
In fact, Henkel supplies Speedpanel with two types of adhesive for different bonding tasks within the Speedpanel A2 Glass and Speedpanel A2 Aluminium products. Henkel also made proposals in terms of suitable application methods that would optimise adhesive quantity and delivery speed: everything from automated spraying to simple pour-and-spread methods.
“Without any doubt, Henkel’s input and technical support throughout the development process proved fundamental to the success we now have,” concludes Fraser.
