Spirolox Retaining Rings - Problem solving by design

1 min read

Spirolox® Retaining Rings in their various different forms, solve problems for design engineers in many applications across numerous industry sectors.TFC Product Manager Simon Ward answers some typical questions customers pose when considering these products.

Why would I consider using one of your Spirolox rings in place of a conventional circlip?

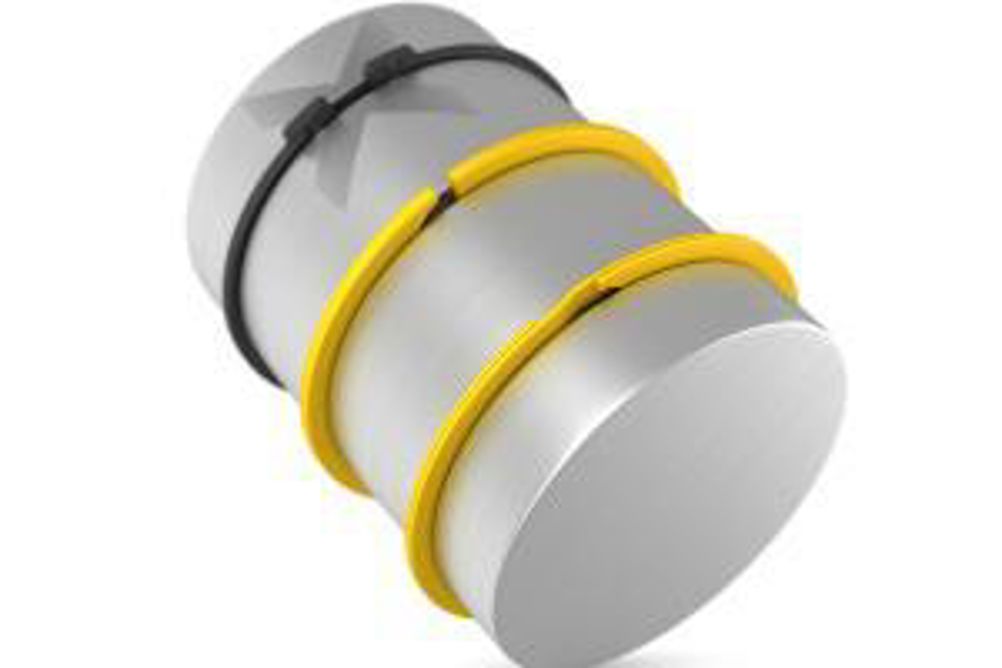

The most significant features of our Spirolox Retaining Rings are that they have no ears to interfere with mating components during assembly thus making assemblies neater and more compact. In addition, since there is no gap, you are provided with a full 360º retaining shoulder of a uniform section. Spirolox rings are manufactured by edge coiling flat wire to precise diameters, this process requires no special tooling, so bespoke designs and/or special materials can be economically produced within short lead times.

How do I assemble the Spirolox Rings?

Spirolox rings are available in two basic types, internal or external and assembly could not be simpler. Unlike a circlip, they do not require special pliers; you can simply open the coils by hand, insert one end of the ring into the groove and then wind the ring into place by pressing down around the circumference until the entire ring is securely located into the groove. For higher volume applications we can provide design assistance for simple plug and plunger tooling to suit both manual and more automated processes.

What materials and finishes are available?

Spirolox rings are available as standard in carbon spring steel and 302 or 316 stainless steel. For more demanding applications where temperatures are a concern or where the rings are operating in a corrosive environment, more exotic alloys may need to be used. In these cases TFC can offer several different grades of Inconel, Elgiloy, A286 stainless steel and Hastelloy. Other applications may demand “nonmagnetic” materials such as Beryllium Copper or additional processes such as passivation or cadmium plating.
