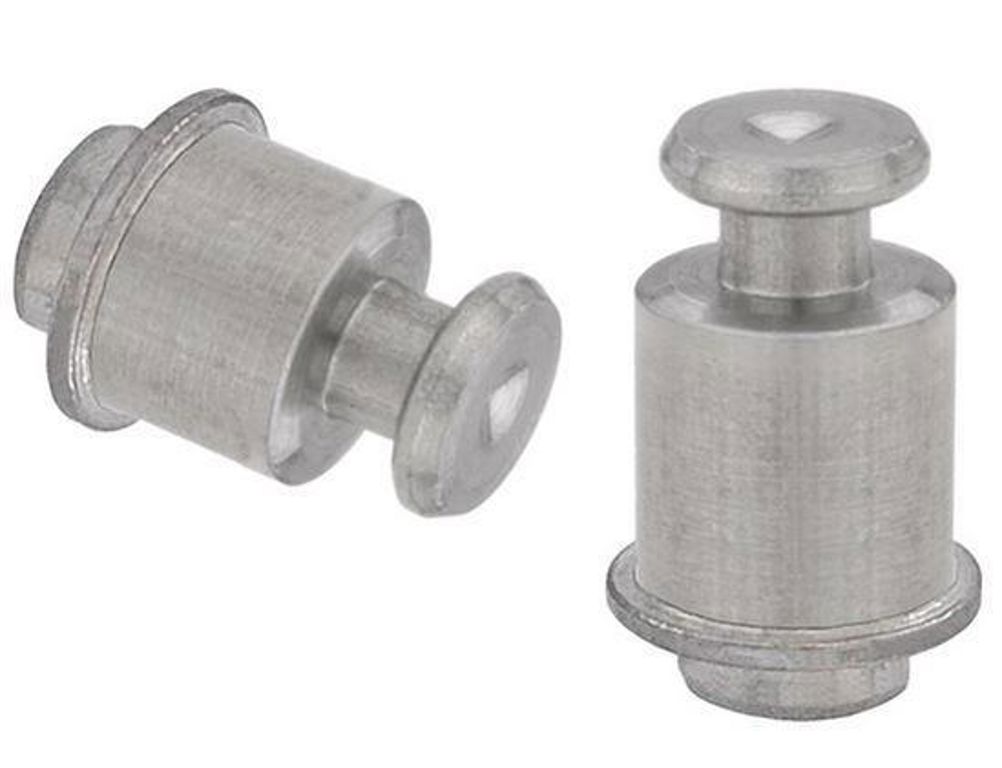

PEM® SMTSK™ keyhole standoffs permanently surface mount on printed circuit boards to enable quick attachment and removal of stacked components without requiring screws or tools. If a totally permanent attachment is required a single threaded SMTSO threaded standoff can be used. This means that only a single screw needs to be used to securely mount the panel. This reduces both assembly and disassembly time.
The standoffs are supplied on tape & reel compatible with existing SMT automated installation equipment & will mount in the same manner & at the same time as other surface mount components prior to the automated reflow solder process, promoting streamlined production & “screwless” designs of subassemblies.
How the new PEM® SMTSK™ standoffs can improve your processes:
- PEM® SMTSK™ standoffs are designed so that a PC board or panel can be quickly slipped into place & then removed from an assembly by simply sliding the board sideways & lifting it off.
- These standoffs mount on PC Boards in the same manner & at the same time as other surface mount components prior to the automated reflow solder process.
- They reduce loose screws within your assembly processes.
- They help reduce scrap, handling & risk of board damage.
- Their unique barrel design allows for quick attachment & detachment.
- They make horizontal or vertical component mounting possible.
- Provided on tape & reel compatible with existing SMT automated installation equipment.
These standoffs will effectively serve to attach & space components using minimal hardware & fewer assembly operations.
PEM SMTSK standoffs are manufactured from carbon steel & available in unified lengths .125”, 250,” & .375” & in metric lengths 3mm, 4mm, 6mm, 8mm, and 10mm. They will install successfully in boards as thin as .060” & 1.53mm.
These standoffs are the latest addition to the complete line of PEM® ReelFast® surface mounted fasteners, which also include other non-threaded and threaded standoffs, standard & micro nuts, right-angle fasteners, & captive panel screws. To view our full SMT range click here
- Industrial Machinery
- Furniture Manufacturing
- HVAC (heating, ventilation, air conditioning)
- Sheetmetal Fabrication
Discussing how the new SMTSK™ standoffs from PEM will reduce Zygology customers’ assembly time, Sales Manager Richard Avery said, “The benefits customers saw first-hand from ReelFast® fasteners proved to be an industry game changer & the new PEM® SMTSK™ standoffs will continue to offer the benefits of PEM® SMT to a wider range of applications.”
If you’d like to find out more & discover how the new PEM® SMTSK™ standoffs can increase your productivity, get in touch with our friendly team of experts today on 0808 123 1221 or email firstname.lastname@example.org.
