Nordson EFD introduces the PICO® XP piezoelectric jetting system designed to maintain precise, repeatable non-contact fluid dispensing valve-to-valve, after maintenance, and regardless of external factors, such as temperature changes.
The PICO XP jetting system’s unique self-regulating calibration controls for variations in fluid body tolerance to maintain the same micro-dispensing repeatability from valve-to-valve and after maintenance.
Its one-of-a-kind sustained stroke target seeking allows it to self-adjust to maintain its micron (µm) level stroke setting for long periods regardless of environmental conditions, such as temperature changes that can alter dispense results over time.

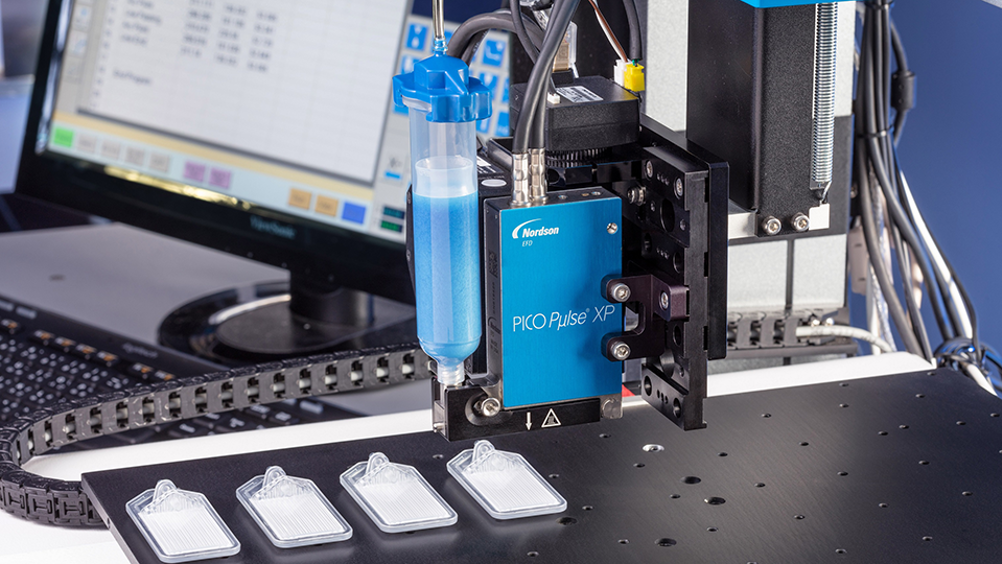

The system includes a PICO Pµlse XP jet valve and PICO Toµch XP controller with an intuitive touchscreen interface for simplified setup. It can apply micro-deposits as small as 0.5 nL at speeds up to 1000Hz (deposits per second) continuously. To improve programming convenience and efficiency, using Industrial Ethernet protocols, choose Nordson EFD offers PICO Nexμs™, a small, 24V, DIN-rail mounted jetting controller providing providing behind-the-scenes control of your PICO Pμlse® XP valves
The valve’s quick-release clasp allows for tool-free removal of the fluid body for simplified cleaning of the fluid path, which saves manufacturers time during maintenance. And the valve can be outfitted with several fluid bodies available with different properties and orifice sizes to meet manufacturers’ unique and versatile application requirements.

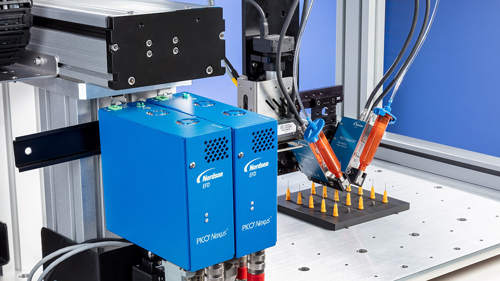

To improve programming convenience and efficiency, using Industrial Ethernet protocols, choose Nordson EFD offers PICO Nexμs™, a small, 24V, DIN-rail mounted jetting controller providing providing behind-the-scenes control of your PICO Pμlse® XP valves.
