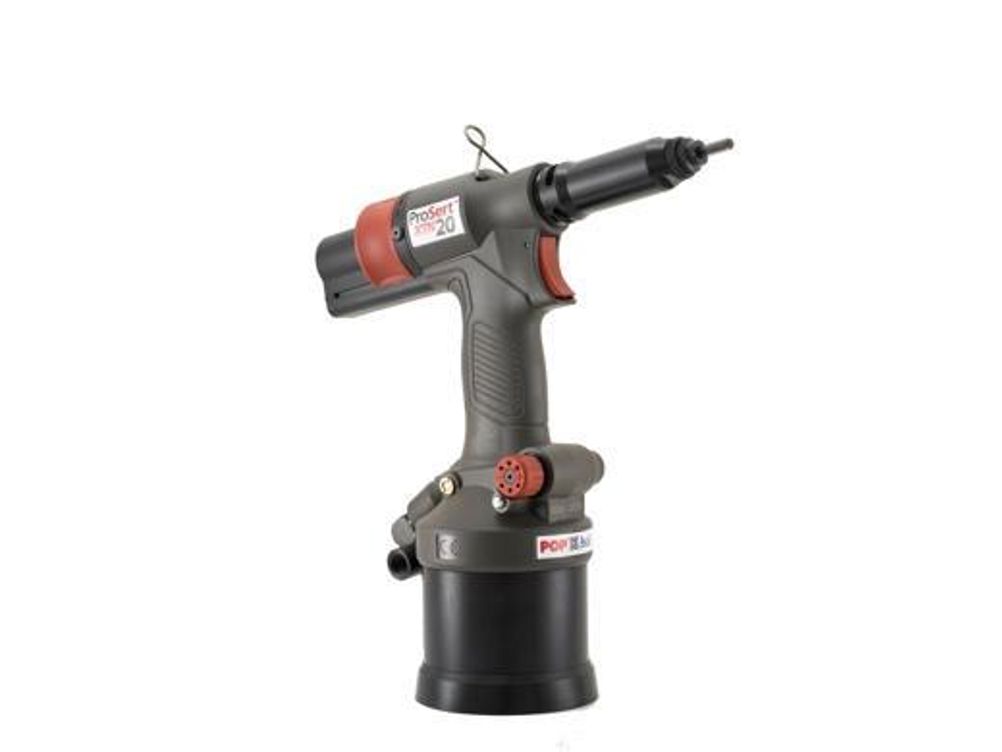

The power tool offers two mode settings: pull-to-stroke and pull-to-force. Pull force at 5bar is 17.65kN.
Fitted with M6 nose assembly, the tool weighs 1.59kg. Piston stroke ranges from 3-7mm, which is adjustable via tool-free setting at the rear of the device. Placing force is also adjustable without tooling via a bottom dial. Mandrels and nosepieces are also tool-free.
Placing cycle time is stated to be 1.16sec.
The tool works with various Avdel and POP Nut fastener products ranging in size from M3-M10.
It requires a compressed air supply from 5-7 bar.
