New EMKA 2225 program Flat Swinghandle Mini version

1 min read

EMKA has announced its 2225 programme is now available in a miniature format which offers IP66 sealing.

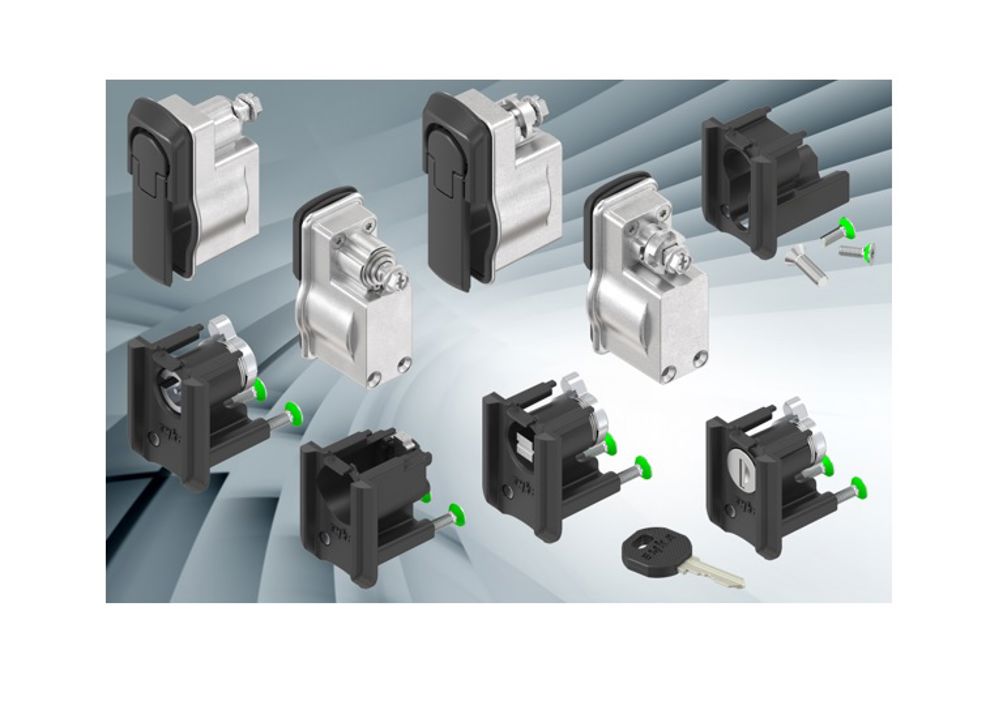

New EMKA Flat Swinghandle Mini version
New EMKA Flat Swinghandle Mini version - (Image credit: EMKA)

The programme also now accepts many locking sets, all interchangeable from the front of the housing for normal or compression operation with half cylinder or round cylinder, KABA or standard inserts such as double bit or railway types. The system, therefore, caters for use with various security classes of application across the fields of industrial enclosures and specialist vehicles.

The advanced design of this new lock programme is made possible in a mini package (with 70x25mm cut out) by EMKA’s hardware technology, incorporating a flat external design which stands only 9mm above the door so that it can be used in a wide variety of space critical applications. Whether as a closure for wall panels in railway vehicles, as a HotSpot cover on telecommunication housings, as a closure on waste bin housings or on electric charging columns, and much more. Its flat design and magnetically retained swing handle make it ideal for areas with narrow passageways, escape routes, or design-oriented enclosures.

In this new patented design, customers are enabled to loosen the two lower screws on the rear side, so the locking set can be pulled out from the front and replaced. If required, other standard inserts, such as the push button from the 2225-U57, can also be implemented. Alternately, on request, the swinghandle without compression function can also be combined with a multi-point locking system.

Due to its compact design, the swinghandle with compression function is smaller than all other existing compression locks on the market in combination with a DIN or KABA cylinder but still offers a full 6mm compression. In addition, this compression latch can be locked and unlocked with all locking devices, including the small EK 333 key, which is not otherwise possible with conventional compression latches, as the keys are usually too weak and can break. The pre-assembled swinghandle and dish feature an integrated scratch protection to prevent surface damage.
