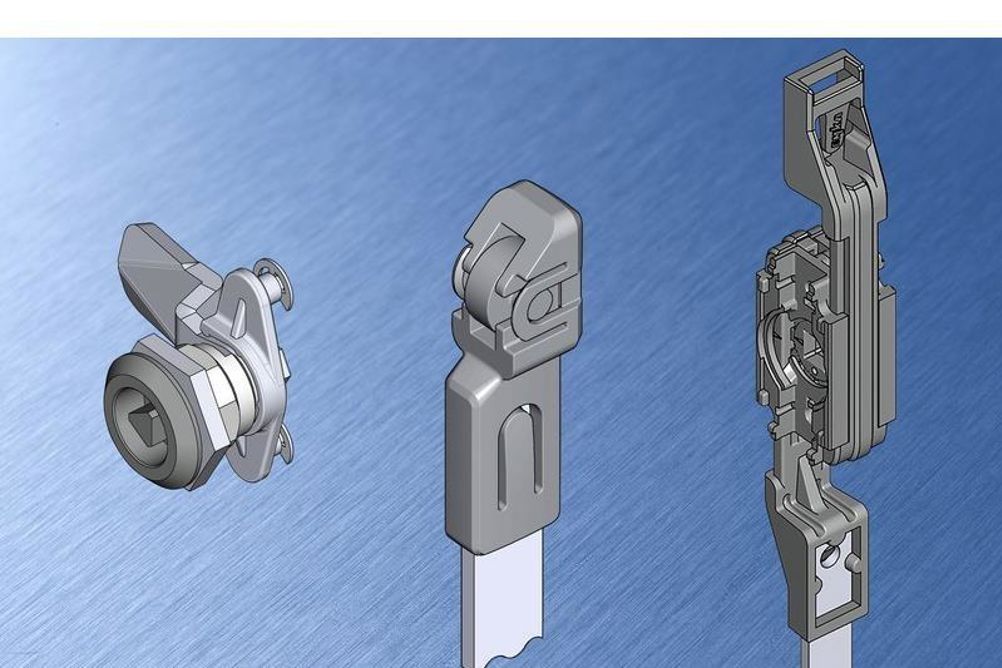

Complementing the rod sets in many standard lengths and with various end designs, is a selection of rod control units for operation of these two- and three-point systems. Screw-on rod controls for one-off units are matched with weld-on items for production line quantities. These, coupled with swinghandles on T/L type handles, provide a secure closure system with excellent gasket pull down to suit up to IP65 specifications.
Cams to match the rod sets are available with varying offsets to allow adjustment for different door depths – when fitted with frame mounted polyamide ramps smooth closure is enhanced and gasket clamping increased by 4mm.
Further information on EMKA products can be found on the EMKA blog.
