ARaymond guide to adhesion and cohesion

2 min read

Understanding the fundamentals of adhesives is essential in choosing the appropriate adhesive, for a specific need and for the desired results.

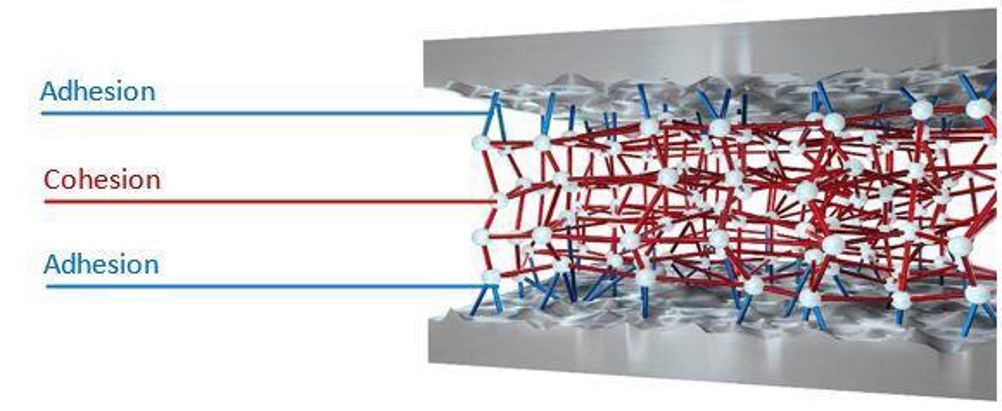

Adhesives supplier ARaymond offers an explanation of the guiding principles in a nutshell. Industrial adhesives are made from polymers that join materials by two phenomena: adhesion of the adhesive on both substrates and cohesion of the adhesive with its internal strength. The combination of adhesion and cohesion determines bonding effectiveness. Both must be considered when choosing the right adhesives and surface treatments.

Adhesion can be defined as the adhering of similar or different types of materials to each other. It depends on the wetting of the adhesive on the substrate and the bonds that will be created between the adhesive and the substrate.

There are three types of bond between the adhesive and the substrate. First is mechanical: adhesives fill the pores of the surface roughness, resulting in mechanical anchoring between the two surfaces. Second is physical: two materials are held together by Van der Waals forces or hydrogen bonds - the attraction between positively and negatively charged molecules. Third is chemical: a chemical reaction between the molecules of the adhesive and the molecules of the substrate surface forms a covalent bond (strongest bond).

Adhesion is improved by working on wettability, but also on substrate roughness (mechanical), on polarity (physical), or by possible activation of the surface to form covalent bonds (chemical).

When adhesion is not sufficient, if a stress is applied on the bond, it will lead to an “adhesive failure” of the assembly: that means that the failure will occur between the substrate and the adhesive joint. Adhesive failure is easy to identify as there is almost no adhesive residue on the substrate.

Adhesive failure must be avoided as it is non-repeatable and unpredictive. Various possibilities exist to improve and control adhesion. They include: surface cleaning, mechanical preparation or chemical activations. In addition, some adhesive technologies are more suitable for some surface materials than others.

Cohesion refers to the inner strength of the adhesive. The cohesion depends on the chemical composition of the adhesive, the type and quality of polymerization and crosslinking and the adhesive joint thickness. The chemical composition of the adhesive has an influence on the cohesion of the adhesive. The usual adhesive chemistries are epoxy, polyurethane, acrylate or silicone.

Cohesive failure occurs when the bond between molecules within the adhesive is forced to fail because the external force exceeds the cohesive bond. That means that the external force is stronger than the covalent forces. Cohesive failure is easy to identify as the adhesive joint is split. Both bonded surfaces still have adhesive residue on them (see pictures below).

As we have seen, bonding involves adhesion and cohesion phenomena that will influence the performance of the assembly. The objective is to understand and control these phenomena to obtain reliable bonds over time. For good bonding assembly, the best adhesive will never reach expected performance if it is not suitable for the materials to bond and if it is not properly implemented.
