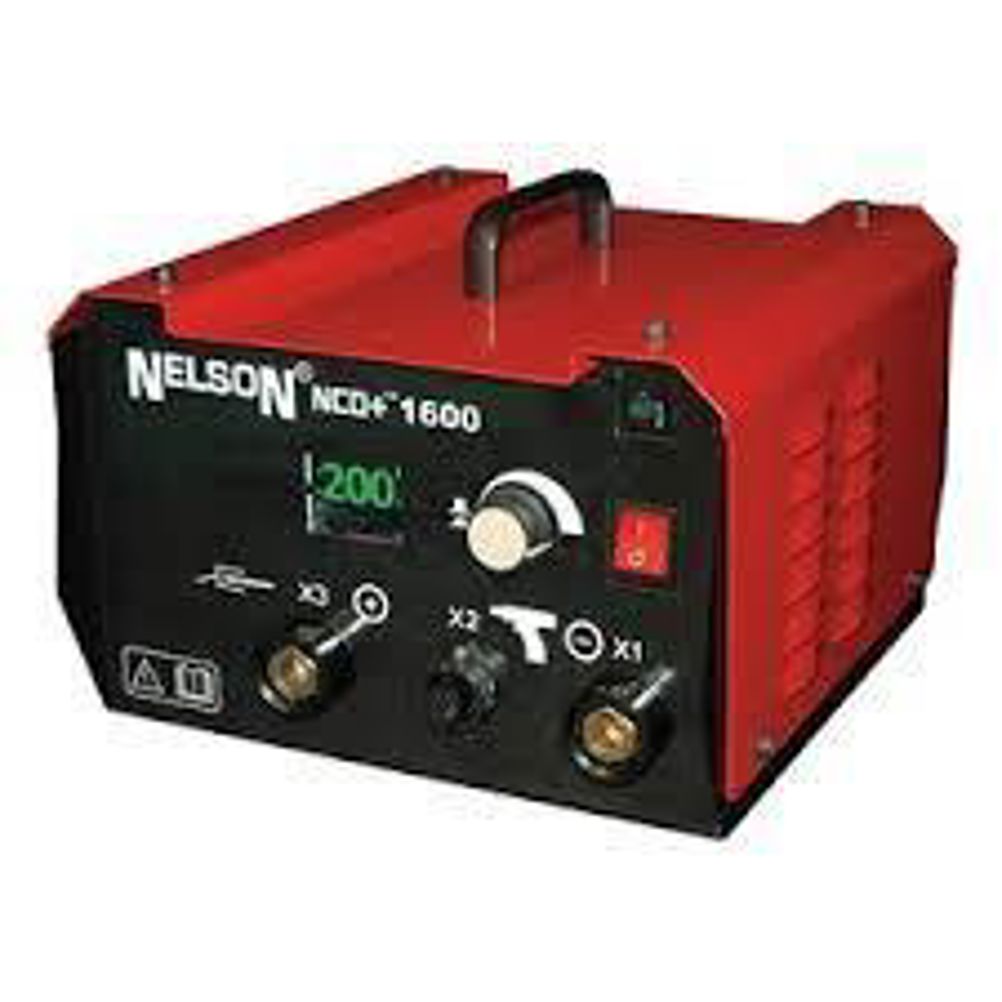

NCD+ 1600 CD Stud Welder - Efficient Switched Mode Power Supply Topology and Digital Technology.

Updates

A new generation stud welding unit for arc welding with and without tip ignition. Ideal for welding steel studs (M3 – M8) (max welding diameter 10.5mm), brass (M3-M8) and aluminium (M3 – M6).

Built on the basis of a 30 KHz switched mode power supply and equipped with a high capacity RISC processor, this device offers the same power as conventional welders at only half the weight and with reduced idle power consumption. This is the ideal tool for welding tip ignition studs up to M8 using a contact or gap welding gun.

Features.

  • Ultra-Portable - Thanks to its lightweight (8.6Kg) and compact dimensions.
  • Power Saving - 40% lower power consumption compared with conventional CD welding units.
  • Colour LCD - Straightforward graphical interface for operation and maintenance.
  • Stud Holder Protection - A three point mount prevents unintentional damage.
  • Stud Expert ™- Preset welder parameters with a database based on material and thread size.
  • Adjustable Legs - Easy setting for different stud lengths.
  • Integrated Process Control - Display of weld current, weld time, arc voltage and weld power.

Applications.

  • For thin sheet metals with minimal thermal impact without deformation and marking on rear.
  • For materials with high thermal conductivity such as copper and aluminium alloys.More info at: www.nelson-europe.co.uk
