Typical applications for the guidelok slimeline P include those found on storage-and-retrieval units in high-bay warehouses, as well as elevators and material-handling equipment. In such applications, the energy chain would normally need to be guided in an enclosed trough system to ensure that it does not swing and cause damage to the cables or the chain itself.
The guidelok slimeline P dispenses with enclosed metal channel troughs or any other special enclosures, which are often used to prevent the energy chain from swinging, protecting the cables and the chain itself. Instead, the energy chain travels freely and safely between the easy-to-install plastic brackets mounted at 2 metre intervals, reducing costs by up to 80 percent.
"The fibreglass guide rail can be fitted with the plastic mounting brackets without using tools," says Justin Leonard, director, igus®. "As well as speeding up installation time and reducing costs, these plug-in brackets self-adjust to compensate for movement within the system, ensuring a quiet, smooth run."

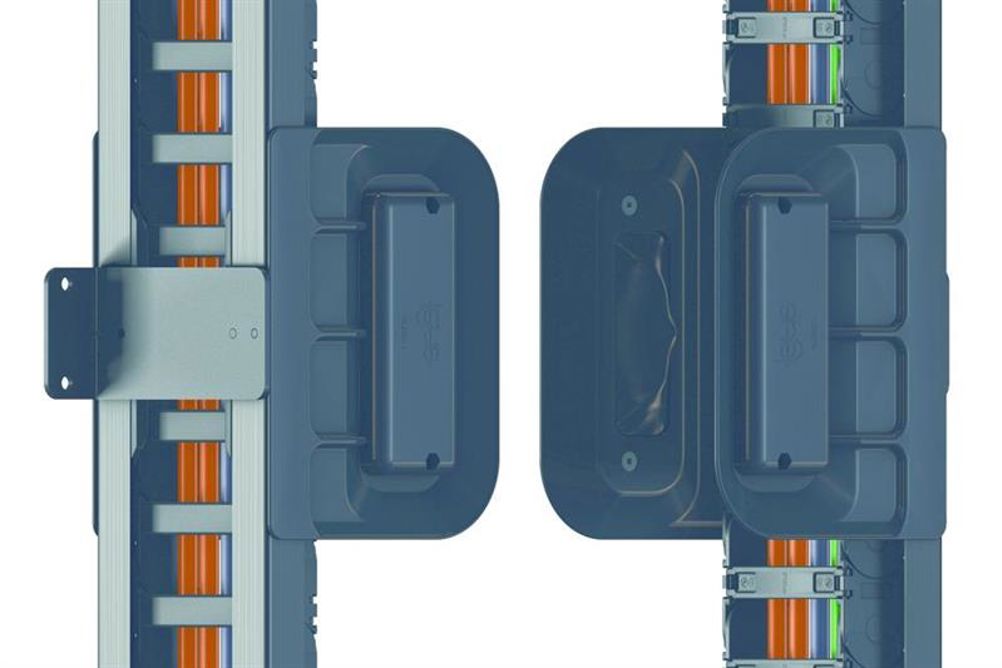

The guidelok slimeline P features two large spring-loaded locks that are pushed back as the radius of the energy chain passes between them, moving back into position where they grip the hanging length securely in place. This not only provides operational security, but also reduces noise due to the smooth, controlled motion.
For further information about the guidelok slimline P system, please visit: www.igus.co.uk or call igus® directly on 01604 677240.
