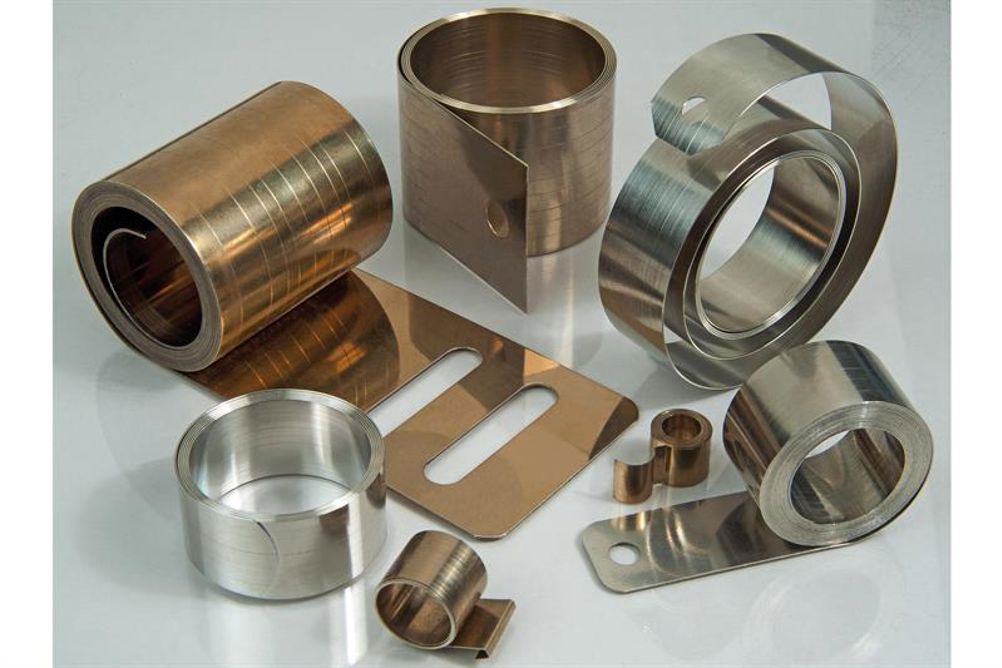

Constant Force Springs
Constant force springs are able to extend through their working range while being maintained in any position by the same force. They are essentially a tightly wound coil of spring steel or stainless steel with the inner end being fitted over a shaft while the outer end is extended. The natural curvature across the material width then produces a constant retraction force. This type of spring can also be used in a motor arrangement where the spring is wound in operation on to a smaller drum. By doing this it is possible to produce a constant torque motor or rewind system which can be used for counterbalancing. Other applications include fast-acting fire dampers in air conditioning ducts and being used to push product forward in point-of-sale devices.
Strip widths up to 150mm
Strip thicknesses from 0.05mm to 1.00mm
Materials: Stainless steel and Spring steel
Design assistance available
Standard parts available
