The customer first approached TR to help it create more effective fasteners for its mounting brackets when they could not find a solution to attach a stand that would be reusable. It also needed to be capable of screwing and unscrewing repeatedly without wearing or loosening. Additionally, it had to be strong enough to take the load and support of the monitor weight.
Initially, the customer had set about identifying a plastic rivet solution, but it became apparent that a specifically designed component was required. TR’s design and engineering teams supported the request.
Together they identified the need to have an insertion force of 35N, to prevent RSI, an extraction force of a minimum of 90N, in order to remain secure, and the need for it to be unscrewed repeatedly with a screwdriver without wearing down over time.
Kevin Rogers, global director of plastics and rubber commodity, TR Fastenings said: “As part of the testing process, a formal audit partner was brought in, application tests including push in force, pull out force, individual cavity inspection, fail tests, shear strength testing, and others were all carried out. I invited the customer’s senior engineer who happened to be based only 30 mins away from our vendor’s factory in China. The plan was to show him the design process and summary to date, all of which was prepared in advance by our vendor for the day in question. We worked on their production line to see the final design running live and took samples from the line for inspection. Whilst this was being done, a team of engineers was busily conducting a full PPAP, which was presented in the afternoon. Upon asking the customer’s engineer for his decision he commented: ‘How can I possibly reject a presentation and product like this, I have never seen such an efficient, well prepared and executed product audit in all my years as an engineer’. At which point the green light was given.
As a final deliberate destruction test as this product is unwrapped and assembled by the public for home use, he asked three of us to physically hold down the stand, at which point he put his foot against the desk and physically tore the PC bracket from the stand. Amazingly the metal stand snapped, but the four special plastic push screws remained firmly in place.”
The design of the product presented a challenging opportunity for the TR team. From the start, it required additional testing and resources that all partners needed to be involved with and had to collaborate together on.
In early design phase, it was a concern that the pull-out force required to remove the screw from above the unit would be too weak, so this needed addressing. The question was raised as to how additional tooling could be used to resize the existing part and modify it. Through collaboration, this was improved and a sweet spot in the tightness of the shank was achieved, providing acceptable installation force, and enhanced pull out force.

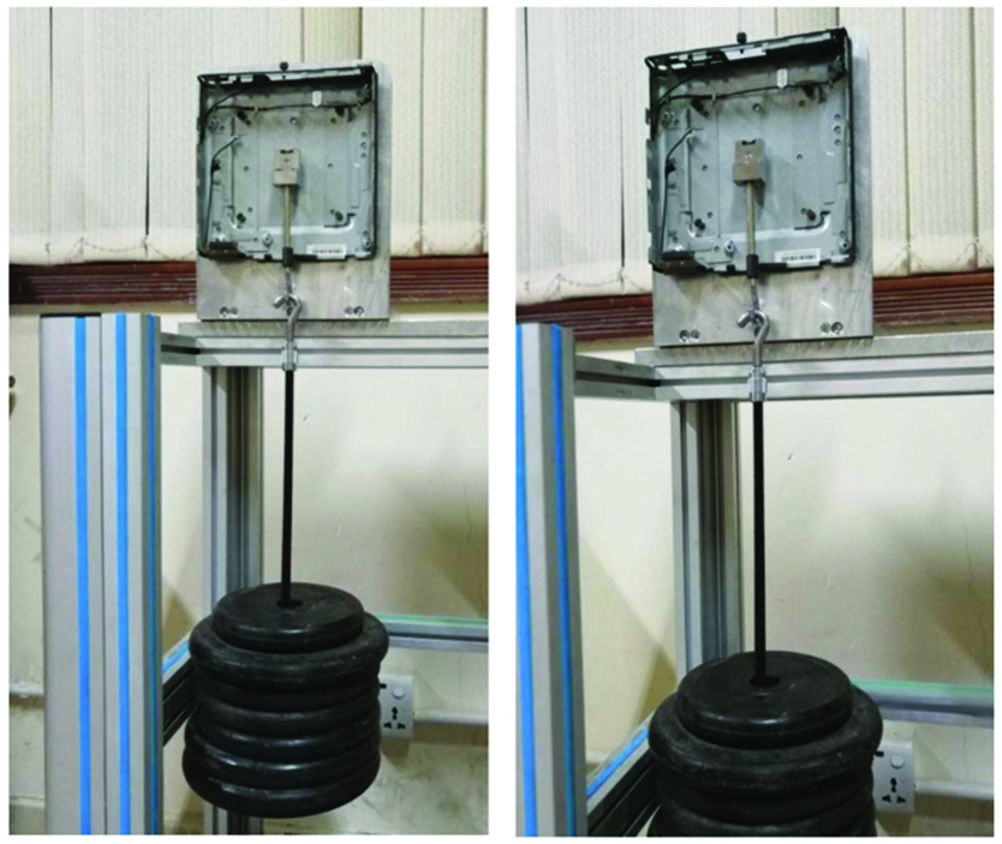

Under normal usage testing, the rivet was pushed into the fixture TR had provided and removed using a standard screwdriver. This was repeated eight times then the insertion force of the 9th time pressing fixture and the pulling force when forced out. In wall mount passing test under the weight of 15.0KGF tested for 24 hours the screws remained tight in place.
The new solution joins a range of M3-M8 sizes in three different head styles to suit a variety of applications.
The team at TR has created a product that is said to have the capability to change the way fasteners are used with PC screen brackets.
