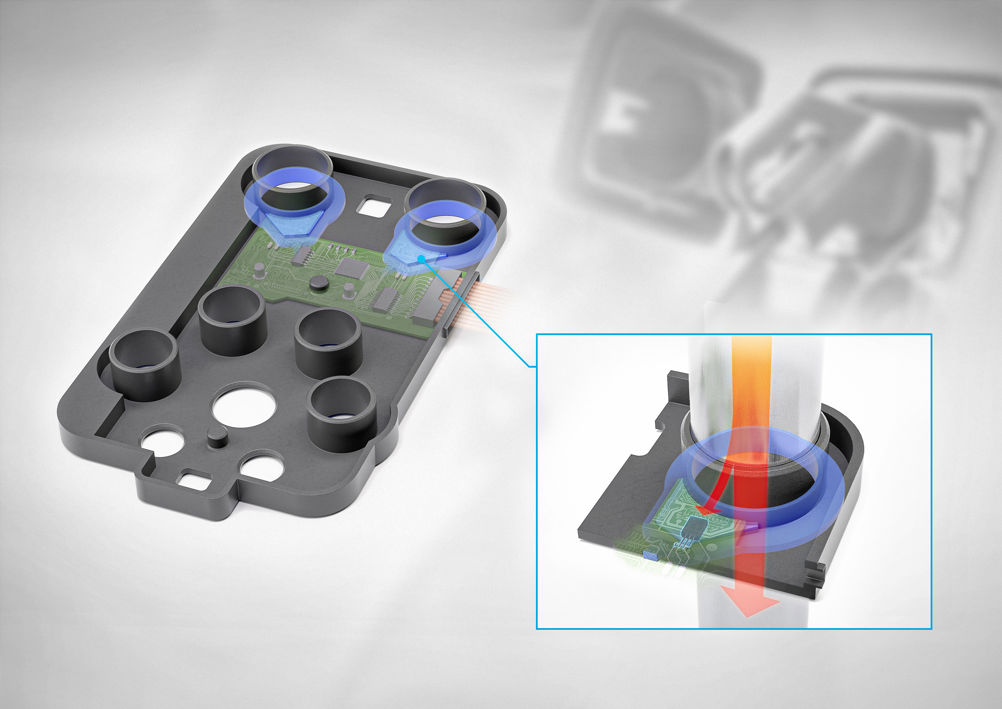

For example, an unnamed car manufacturer has used this series production. Behind the charging port cover, the vehicle displays a usual multi-pin connector for the charging cable, embedded in a plain plastic front. What remains invisible is the area right behind it. Here are several components whose interaction is essential for the thermal management of the charging process: a circuit board with temperature sensors, measurement and control electronics for charging management, all secured inside a housing about the size of a hand. Freudenberg’s Thermal Interface Material (TIM) ensures thermal conductivity between the housing and the sensors. It picks up the heat flow through the copper wires connected to the battery and passes it on to the temperature sensors, thus promoting the rapid build-up of charging control, including the continuous thermal management of the vehicle battery.
The two-component plastic housing has a three-dimensional geometry, since the charging plug’s connection poles pass through it. It keeps board in place and facilitates the assembly: the electronics unit is clipped in with snap connections. This elastomer supports precise contact while its electrical insulation capability shields the sensitive electronics from the charging voltage of up to 800 volts. Freudenberg manufactures the housing with injected elastomer and provides it to an automotive supplier, which in turn produces the module ready for installation by the automaker. The latter installs it in large numbers in series-produced vehicles.
Armin Striefler, product and process developer at Freudenberg, said: “This project was right up our alley, because our material is predestined for a wide range of complex electrical applications. With its numerous qualities, it provides the right answers. An important advantage for efficient series processes: The elastomer material can be processed through injection moulding. This also makes its use very flexible, since nearly all three-dimensional geometries are possible and, thanks to its the material properties, always adhere optimally to the substrate – whether plastic or metal. It can be sprayed on directly and doesn’t need primer."
Like all plastics, silicone is inherently thermally insulating. For the new material, it is mixed with inorganic fillers that make it thermally conductive. These fillers are special non-conductive metal compounds.
Thermal conductivity is 1.7 to two watts per meter Kelvin. For comparison, the thermal conductivity of air is 0.026. The manufacturing process makes thin-walled components possible. According to the heat equation from Fourier equation, this is good for thermal conductivity. In the above-mentioned project, the elastomer below the temperature sensor has a thickness of only 0.8 millimeters.
Striefler added: “We have had very good experiences with thicknesses between 0.8 and three millimetres. For physical reasons, heat transfer decreases when the walls are thicker.”
The material achieves a CTI value of 600, which is said to place it in the best possible protection class for tracking resistance. The dielectric strength is more than 10 kilovolts per millimetre. This means that the common test voltages of 2.4 to 4 kilovolts will not pose any particular challenges for the material. Its hardness is around 35 Shore A.
Being able to use an injection moulding processes is a plus. The specific production process prevents trapped air both in the elastomer and on the contact surfaces with other materials. This might otherwise lead to electrical problems, such as voltage breakdowns – which are certainly not welcome, of course. The material is fire-resistant in accordance with UL94 with classification V0, which puts it at the highest possible safety level.
Effective heat dissipation is a prerequisite for efficient processes in numerous electrical applications – wherever considerable computing power is required, or high currents are flowing. At this time, typical applications are in the field of electromobility, not least because of the significant requirements when the charging voltage is 800 volts, which is increasingly common in electric vehicles. Cooled busbars in traction batteries are one example. Especially during fast charging or high power output, these heat up with relatively high intensity.
The material and process are predestined for the targeted heat discharge of technical components. With a three-dimensionally designed moulded part, this can occur in direct contact with the electronic components. The range of applications is wide, which is evident in the example of an oil-resistant TIM that is currently in pre-development at Freudenberg. A material like this goes even further in expanding the potential applications.
“We welcome tricky challenges,” Striefler concluded. “Because that’s exactly where this material is in its element.”
