The ball lock pin has a practical locking mechanism designed for quick release in numerous applications. When the button is pressed, it activates the spring mechanism inside the pin which releases the ball lock by withdrawing the balls that extend beyond the shaft diameter within the part. Once the button is released, the ball lock is activated again which guarantees a stable and self-securing locking function.
The component’s efficient self-locking mechanism significantly reduces set-up time, providing engineers with connections that are quick and easy to join. norelem’s ball lock pins have been designed for use in multiple applications, ranging from automation technology, robotics, electronics and processing mechanics to machine and plant construction.

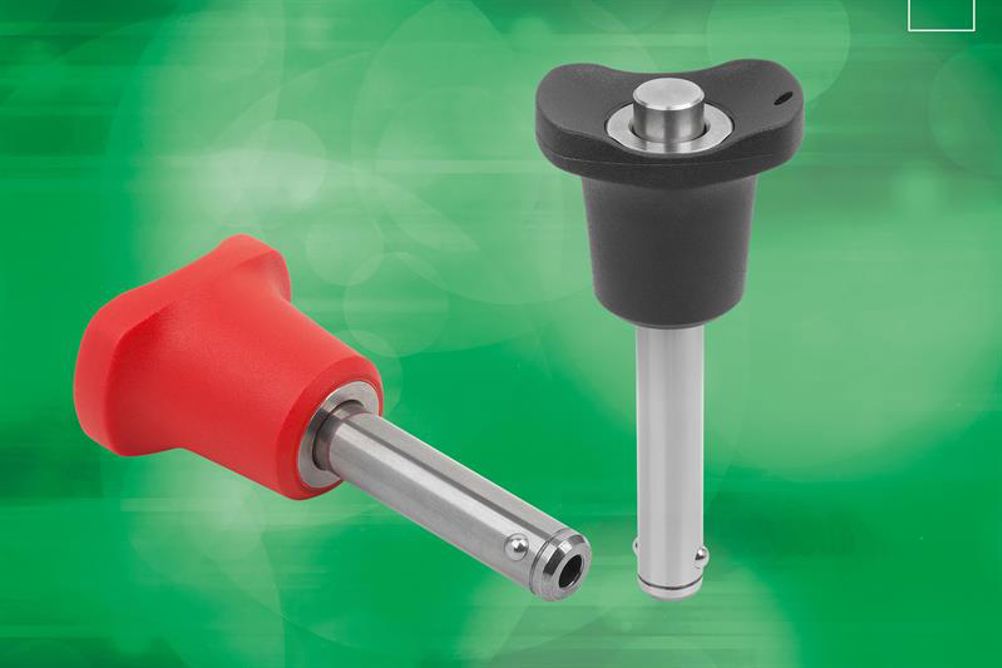

norelem’s ball lock pins are available with a normal grip, T-grip or L-grip depending on the application, with diameters from 5mm to 16mm. Lengths range from 10mm to 80mm and shearing forces from 24kN to 257kN, enabling engineers to choose the perfect fit for the job.
High-grade materials throughout the part’s mechanism improve shear resistance and provide durability. The initial grip is made out of thermoplastic, which is then supplemented by a stainless steel 1.4542 pin and stainless steel 1.4305 push button alongside a spring mechanism (1.4310 stainless steel) and the ball component itself (1.4125 stainless steel).
Marcus Schneck, CEO of norelem, states: “With the ability to fasten and join elements, workpieces and other machinery components with just the press of a button, our high-shear ball lock pins provide engineers with the reassurance of reliability and durability from the moment of installation.”
To ensure load specifications are accurate, all load values have been calculated following DIN 50141 as standard.
