This, it is stated, enable easier tightening of mating screws and superior vibration-resistant locking performance in thin metal assemblies.
“The modified thread formation allows mating screws to spin freely during the attachment process until clamp load is induced during the screw-tightening process,” added the company. “The applied clamp load then engages the locknut’s vibration-resistant locking feature, which securely and reliably locks the screw in place. Compared with traditional locknuts, excellent joint clamp load remains consistent, even after many on/off cycles.”

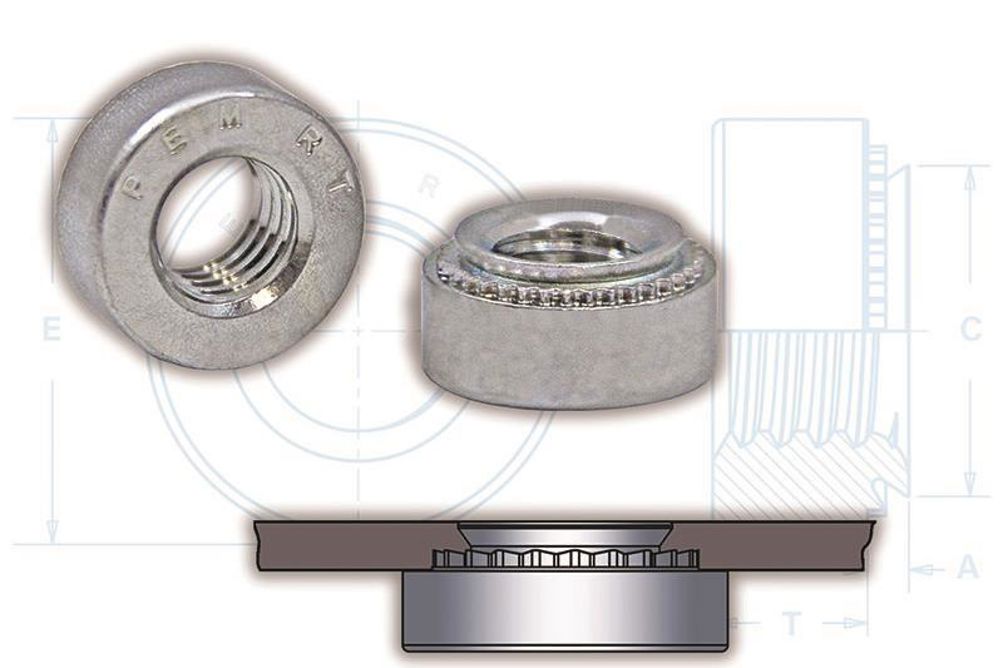

PEM S-RT self-clinching locknuts install into aluminum or steel sheets as thin as .030”/0.8mm and become permanent parts of an assembly.Upon their installation, using a PEMSERTER or other standard press, the back side of the host metal sheet for screw insertion will be flush or sub-flush and the assembly side will be flush or sub-flush, ideally suiting sheet-to-sheet attachment applications.
These carbon steel locknuts can be specified with thread sizes from #4-40 through 5/16-18 and M3-M6 and in a variety of shank lengths.Zinc plating finishes are available in standard colorless or optional yellow.
Detailed technical literature (PEM Bulletin RT), individual fastener drawings and CAD models for these RoHS-compliant fasteners can be downloaded at www.pemnet.com.
