Enclosure gaskets to fit frame edges from FDB Panel Fittings

1 min read

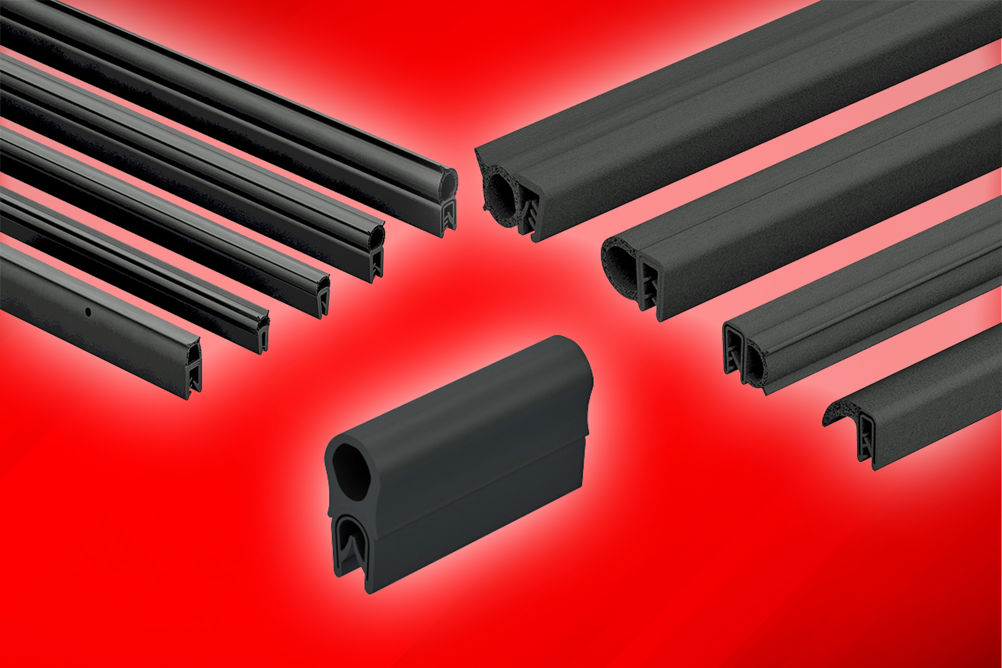

Profiles now available from the FDB Online store combine the characteristics of edge protection profiles and sealing profiles.

Their Clip-on design enables quick and convenient installation to provide effective enclosure sealing when fitted to a flange edge. This gives rise to the description “P” type gasket and it is the hollow “P” section which allows a door clamping range from 0.8mm to 6.00mm. This is especially useful when paired with compression latches which typically provide a 6mm clamping range. In these situations, the hollow section can be punched to release internal pressure as the “P” part is compressed.

Combination clip-on sealing profiles extend the properties of edge protection to include sealing by featuring, a sealing part of the profile made of sponge rubber which is then bonded by vulcanization during the extrusion process to a soft rubber with a steel clip-on core.

FDB Panel Fittings combination profiles consist of PVC with closed cell sponge rubber profiles. These sponge rubber elements are made of high-quality synthetic rubber and are characterized by a high age resistance and great elasticity. The profiles made of NBR are oil resistant and tested according to UL standards.
