EJOT offers solutions in electromobility

2 mins read

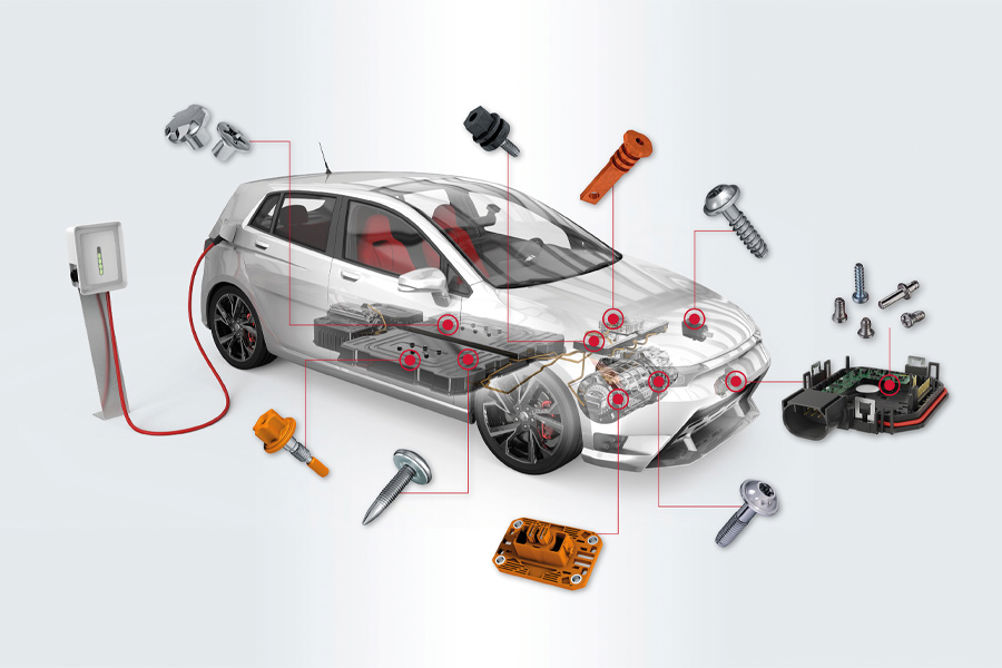

Fastening technology specialist EJOT can draw on manufacturing technologies in the areas of cold massive forming and plastic injection moulding to offer tailored solutions in electromobility.

Image credit: EJOT

High-voltage contacting

Products for electromobility often fulfil different functions than classic screws. Alternative materials are also used in many applications. For example, EJOT's components for the high-voltage range of electric vehicles are manufactured from copper instead of steel in a complex, multi-stage cold-forming process. In combination with another EJOT manufacturing specialty, the plastic injection moulding, cold massive forming is also the basic technology for special metal-plastic components. These are used, for example, as pole screws for the high voltage contacting of battery modules or as spacers for the electrical decoupling of printed circuit boards in an on-board charger.

Battery systems

With regard to batteries, the focus at EJOT is again on fastening. Wherever maximum assembly reliability and performance are required, the flow drill FDS screw, which is already used for the body-in-white construction, can demonstrate its advantages. Equipped with a special sealing function for this application, it ensures that the battery housing is securely fastened to the cover. EJOWELD friction welding, also known from body-in-white construction, comes into play when aluminium components have to be fixed to the battery frame. And if the battery box is made of plastic instead of metal, EVO PT screws enable process-safe direct fastening of the cover to the battery frame. During the design stage, they also offer FEM-based component analysis and the digital EVO CALC calculation service.

Tobi – the high-performance screw drive concept

The Tobi Drive System is a brand new drive concept. Thanks to the special design between drive and bit, three important requirements can be combined: The axial alignment of the system when inserting the bit into the screw head drive simplifies handling even in areas that are difficult to access. A contact surface between bit and drive that is up to 10 times larger ensures lower surface pressure and thus less wear on the tools. Finally, the large concave and small convex radii inside the drive as well as a taper to the upper edge of the bit lead to a slight clamping effect of the screw so that it cannot fall out of the bit. This enables safe working in all positions, such as overhead assembly or when fastening components or parts in hard-to-reach areas – even in automated fastening processes.

Furthermore, the self-retaining effect of the Tobi Drive System means that the vacuum technology previously used in assembly for the intake of the screw in the mouthpiece can be omitted. The drive system also holds screws made of non-magnetic materials securely in all positions. This leads to significant cost and time savings as well as a reduction of the CO2 footprint in production.
