The Role of Surface Energy in Adhesion and Bonding

5 mins read

Surface energy plays a crucial role in determining the wetting behaviour of liquids on solid surfaces. Generally, surfaces with higher surface energy tend to be more easily wetted by liquids, resulting in better spreading, while surfaces with lower surface energy are more likely to repel liquids.

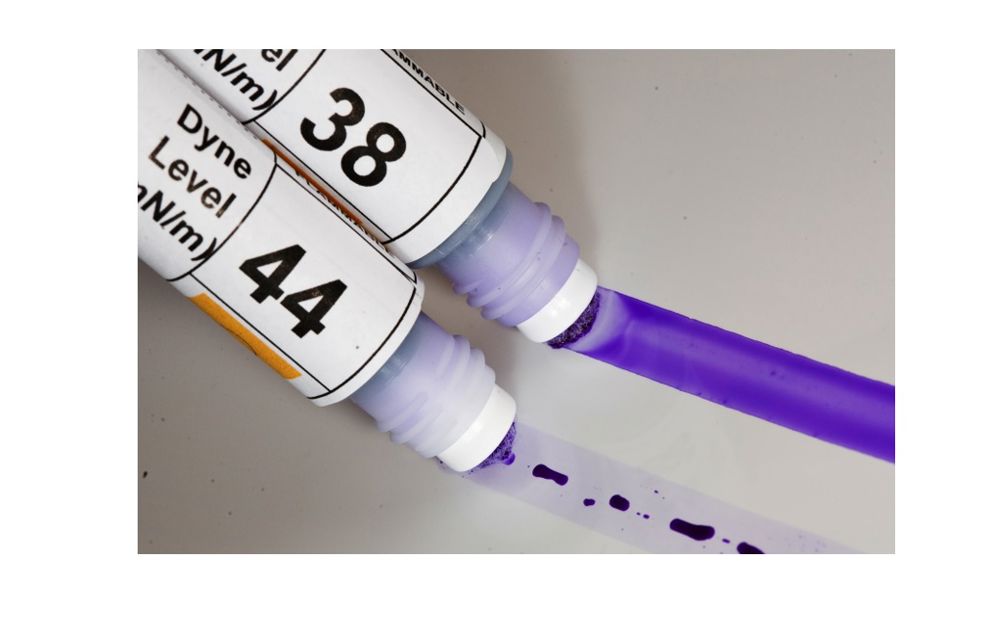

(Image credit: Intertronics)

A prerequisite to any adhesion and bonding is wettability, and  soand so understanding surface energy is critical to the success in the application of adhesives, coatings, inks and more. Surface energy can be measured in different ways, both before and during the manufacturing process. Here, Kevin Brownsill (KB), Head of Technical and Learning at adhesives and sealant supplier Intertronics, and Alison Fox (AF), Brand Manager of Dyne Testing, an Intertronics brand, answer some of the important questions about why manufacturers should measure surface energy.

Why is surface energy important?

AF: Different solids have different surface energy depending on their molecular makeup. For example, polytetrafluoroethylene (PTFE) has a very low surface energy, and metals typically have a high surface energy. The surface energy of a substrate can also be affected by roughness and contamination. Surface energy will affect liquid flow across the substrate and can influence, for example, the formation of homogenous thin coatings and the way that fluids react with objects placed in the human body in biomedical applications.

KB: The successful application of adhesives, coatings, inks and other materials where adhesion is important is highly dependent on the wettability of these materials to the target substrate. If the liquid behaves like water on a greasy plate, forming discrete balls rather than a film, then it is easy to see adhesion problems ahead.

Why is wetting necessary?

KB: Wettability is a prerequisite of adhesion. For bonding or printing to be a success, the surface energy of the substrate must be higher than that of the liquid so that wetting can occur – the liquid forms a contiguous film on the surface, rather than the liquid beading up or retracting from the surface. SoSo, we need to understand the relationship between the surface energy of the substrate and the surface energy (or surface tension) of the liquid. Many modern plastics have low surface energies that make bonding a challenge, because they are lower in value than the adhesive or ink. Another issue may be surface contamination, like oils, greases or release agents, which can influence surface energy and inhibit wetting.

AF: Surface measurement technologies help identify the cause of poor wettability, so that manufacturers can optimise material choice or the surface preparation process to eliminate adhesion issues. We can measure physical properties of the substrate and the surface tension of the liquid; understanding those is important for that bonding mechanism.

How and when do you measure surface energy?

KB: That depends on the situation. For qualitative and fast testing, dyne inks are a cost-effective method that can be used for on- or off-the-line testing. The inks have specific surface tension, measured in mN/m, or dyne/cm, often known as “Dynes”. When a dyne ink is applied to a substrate, the ink will either form a continuous film on the surface or pull back into small droplets. If you apply a 38 dyne ink to a substrate, and the ink stays as a film for three seconds, the substrate has a surface energy of at least 38 dyne/cm.

Dyne inks are predominantly supplied in a special pen (hence, Dyne Pen), which makes them very convenient and portable. A manufacturer can take a component/material off the production line and test it quickly for its surface energy – so for example, confirming that a polyethylene film has been surface treated prior to printing. By using a range of Dyne Pens of various dyne levels, the surface energy of a substrate can be determined to a narrow range.

AF: At the other end of the scale are measuring instruments like tensiometers. A tensiometer is an instrument used to measure the surface tension of liquids. It can also measure other properties, like contact angle. The wetting behaviour of a liquid on a solid surface is directly related to the contact angle and surface energy, where a lower contact angle indicates higher surface energy and better wetting, while a higher contact angle suggests lower surface energy and poorer wetting. A good example of this kind of instrument is the Biolin Scientific Theta range of optical tensiometers. A drop of liquid is dispensed onto a substate, and viewed from the side with a high resolution camera. This is analysed with sophisticated, user-friendly software. These instruments are predominantly used off-line to give accurate and repeatable quantitative measures of contact angle, and therefore wetting.

Optical tensiometers like the Theta range are used in production quality control centres, product development and research laboratories and test houses. With contact angle measurement you can compare a range of solids and liquids with surface treatments to ascertain the most effective.

How can surface energy be improved?

AF: First, manufacturers should understand what surface properties are needed to obtain the ideal conditions for adhesion. If you’ve got a clean, dry, dust-free and non-porous surface, you’ve got the first step to good wettability. For some applications, the surface can be cleaned with an isopropyl alcohol wipe to ensure there are no oils or greases. For more critical applications, understanding the cleanliness of the substrate is beneficial. For example, on metal substrates, the SITA CleanoSpector is a popular and easy-to-use handheld non-destructive metal cleanliness test instrument used for measuring organic contamination such as oil, grease, coolants, release agents and cleaning fluid. This can indicate the need for a more effective cleaning process or highlight a poorly functioning cleaning process.

 Even if you have a clean substrate, you will still have wetting and bonding problems if that substrate has a low surface energy or is a non-polar surface. Many common plastics, such as polyethylene and polypropylene, have non-polar surfaces and low surface energy. Some form of additional surface treatment can help; this includes flame treatment, corona or plasma.

What is plasma surface treatment?

KB: Application of plasma to a surface can clean at a molecular level and increase surface energy – activating the surface ready for bonding. For example, at Intertronics, we have used atmospheric plasma on a polyethene surface. Untreated it had a surface energy in the low 30s mN/m, but treated it had a surface energy of ~55 mN/m, therefore making it bondable with an adhesive with a surface tension in the 40/45 mN/m range.

Plasma can modify and functionalise surfaces to prepare them for adhesive bonding, varnishing or printing without altering the bulk properties, or marking or discolouring the treated part. In a process known as surface functionalisation, plasma treatment causes the generation of polar oxygen groups on the substrate’s surface, which can act as bonding anchors by forming covalent bonds with molecules in an adhesive to increase bond strength.

Atmospheric pressure plasma treatment is a versatile and efficient method for surface modification, widely used in industries ranging from automotive to biomedical for improving surface properties without altering bulk material characteristics. These devices can often use compressed air, or sometimes specific gas mixtures for special applications. For larger scale fast production, manufacturers can opt for technology such as the Relyon plasmabrush PB3, which can be integrated into automated, continuous production processes.

In addition, there are a range of cold atmospheric plasma devices on the market. Tthe Relyon piezobrush PZ3 handheld device is a good choice for R&D, pre-production or medium volume work due to its small size and manoeuvrability, while a variant, the PZ2-i can be mounted onto a robot for automated or semi-automated applications.

In summary, the wettability of a surface is a complex interplay between the surface energy of the solid, the surface tension of the liquid, and their interactions. The contact angle serves as a measurable indicator of these underlying forces, providing valuable information about the wetting behaviour of liquids on different surfaces. Understanding wetting behaviour is a prerequisite to achieving good adhesion for your adhesive, coating, ink, or paint.

For assistance in measuring surface energy and to find out which application is most suited to your production needs, visit Dyne Testing’s website.
