From automotive, trucking, and heavy equipment to aerospace, agriculture, and high-volume appliance/electronics, manufacturers looking to reduce weight (or for cost savings) have turned to lightweight materials like aluminum, plastics, zinc and magnesium. The associated fastening issues require zero defects from fastener manufacturers, as production speed and quality depends on them.
While fastener manufacturers have long relied on sorting to remove defects before they enter production, the fact is that cold heading, moving and inscribing metal with threads is not entirely predictable. Each piece must be inspected for visual imperfections, such as burrs, scratches, thread damage or head cracks to dimensional measurement – for example, thread parameters, lengths, diameters, tapers, radii, straightness, perpendicularity, recess depth and head protrusion.
With today’s high-volume, auto-feed systems and pass-through parts, fasteners require more integrity than ever. To maximise production uptime, critical part safety, enhance brand, as well as prevent potential rework, recall or liability, manufacturers expect fasteners to have zero defects, despite the use of lightweight materials on the mating hole/application.
Accordingly, the fastener industry is increasingly relying on higher resolution, 3D inspection of billions of fasteners. Gauging, sorting and cylindrical part inspection systems incorporating laser, vision and eddy current for dimensional measurement and determining metallurgical defects are now used for high-speed inspection of fasteners, ranging from bolts, screws, studs and cylindrical parts to nuts, washers, fittings and bushings.
CHALLENGING LIGHTWEIGHT MATERIALS
While automotive manufacturers have long required zero defects from suppliers, the introduction of lightweight materials, such as aluminum body panels, engines and manifolds in companies from Ford and GM to Audi and Jaguar, has made this a particular challenge when the fasteners are still steel.
“With the switch to aluminum bodies, such as in the Ford F-150, you can’t weld like with traditional steel,” says Mike Nygaard, president of General Inspection, a developer of high-speed measuring and sorting fastener inspection systems. “Instead, there’s billions of self-piercing rivets (SPRs) used, and their dimensions, bore size and other attributes must be exact, with no obstructions. It’s critical to ensure not only that steel fasteners don’t damage the aluminum or lightweight material they’re inserted in, but also that they’re flush, fastened properly and not loose.”
According to Nygaard, in high-speed automotive production lines relying on automatic torquing systems, even a few fasteners that fail to meet dimensional specs out of a million used per hour can cause zero uptime, if they jam and require troubleshooting to get production going again. The wrong-sized pitch diameters on threads, burrs on the thread or similar issues can trigger auto-torque failure, stopping thread insertion.

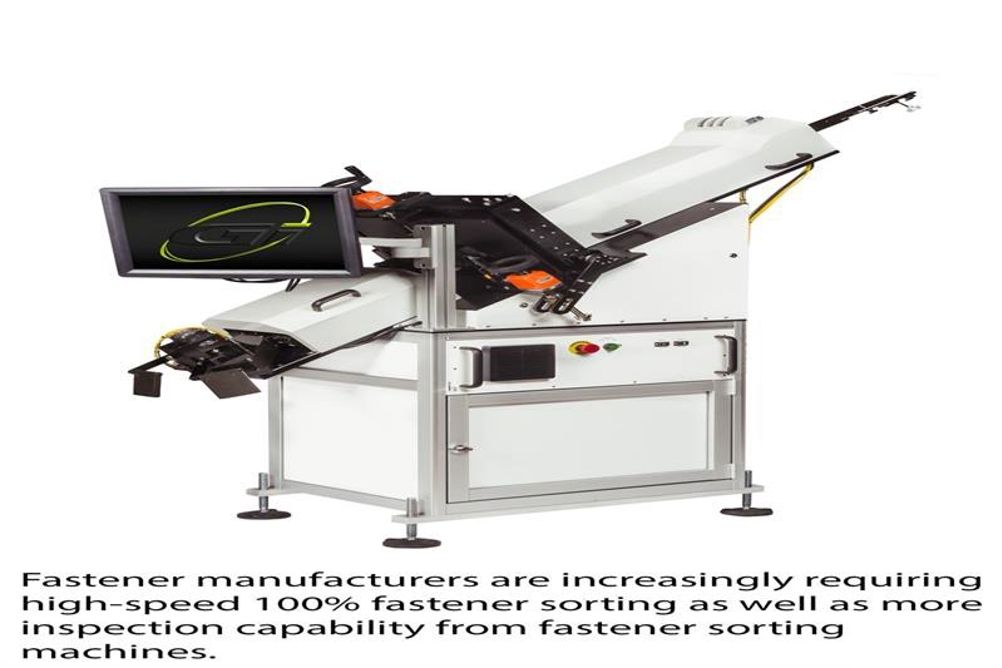

Quality control is critical, because even small defects can cause big problems in working with lightweight materials. To address these production and quality issues, the increasing use of lightweight materials is requiring high-speed 100% fastener sorting, as well as more inspection capability from fastener sorting machines. “While in the past it was okay to look at a fastener’s silhouette to see if it had a thread or gross thread damage, now sorting machines need the ability to find any defect,” he points out. “Thread damage can be anywhere and, if you’re not looking at it from 360 degrees, that burr will get you.”
ADVANCED VISION SYSTEMS
Today laser and vision-based machines can provide 100% high-speed 3D fastener inspection. Some use 3D information from multiple laser beams to detect defects that may only be on one side of the part, such as damaged threads. Laser topography, in fact, can provide a detailed 3D image of the part, detecting dents, flatness, chips and dimensional characteristics.
Other measuring machines use a series of advanced vision systems to detect defects. Such a multi-view system can provide images from all around the part for greater than 360° coverage, plus an ability to measure all dimensions and find visual defects, such as cracks, scratches, porosity and laminations.
Some advanced optional sensors can also provide an axial view vision, so the camera can ‘see’ the side of the fastener head or flange to detect cracks or recess defects. In addition, an internal viewer lens can expand the view inside the part, providing complete detail of ID threads for a full 360° view of the entire length, to detect very small defects.
Eddy current sensors can also detect metallurgical defects such, as in plating or heat treatment, which can help to prevent premature fastener rusting, as well as cosmetic defects. This can be vital in safety critical parts, such as a wheel bolt, which may be subject to constant vibration or weather exposure.
While the most precise high resolution, fastener inspection machines can measure with as little as 2 microns of total error; typical equipment can be several orders of magnitude less precise.
“Eliminating defective parts is all about precision and repeatability,” stresses Nygaard, whose company General Inspection has over 40 patents or patent pending for high-speed measuring and sorting fastener inspection systems. “A typical part today might have 10-30 dimensions checked – all important to how it assembles and functions. Any error in measurement increases the odds of falsely failing the part or falsely passing it, either of which is bad for profitability and quality control.”
To minimise error and gain precision in fastener inspection equipment, he advises, it is important to ask questions like: “How well is the part positioned in the mechanical handling apparatus? How flat is the surface that part riding on? Is there any vibration distorting the image? Is the part aligned with the optics properly?” But he says this is the most important question to ask: “Is the sorting machine National Institute of Standards and Technology (NIST) traceable?”
Since many companies are ISO 17025 accredited, their quality manual, in fact, requires any gauging system they use to comply with NIST traceability. Calibration and NIST traceability are actually mandatory, even though many fastener companies do not realise this requirement. “A sorting machine is a gauge when you’re using it to check dimensions on a part, but the dirty little secret in the sorting industry is that most machines are not traceable to NIST,” states Nygaard. “That can wreak havoc on your production and quality control, because what you think you’re sorting for isn’t really what you’re sorting for. It can be like using a mis-marked 13 inch ruler to measure and sort for 12 inch parts.”
According to Nygaard, selecting a fastener sorting system with intelligent software is also important in eliminating defective parts. “If the parts aren’t uniform, the algorithm needs enough artificial intelligence to properly place fastener feature start/stop positions,” says Nygaard. “To improve lean manufacturing and process control, you want to find and reject only the defects, and then use that data to prevent defects, reduce scrap and variability to increase yield.”
Despite the increased precision of today’s high-resolution fastener inspection equipment, they can be as fast as or faster than traditional sorting machines. “Fastener companies can expect to sort about 300-1,000 parts per minute with the best fastener inspection machines, but with better precision and coverage of the part than typical sorting machines,” says Nygaard. “The machine should be flexible enough to accommodate thousands of different part numbers, but there’s a tradeoff in flexibility and speed.”
While the cost of these fastener inspection systems is higher than traditional sorting machines or cut-rate overseas made equipment, over the course of a typical 5-7 year lifespan, the net cost is often just 1/10 a penny or less per fastener in high-volume operations.
“If you’re making safety critical, lightweight parts or will be functionally checked by auto-torquing mechanisms, why roll the dice and play Russian roulette with your company’s good name?”, Nygaard concludes. “Would you pay 50% less for a life insurance policy that covered everything, with the exception of cancer and heart attack? Relying on the most precise 3D fastener inspection systems for 100% sorting will help ensure that fastener companies remain profitable, top-tier suppliers.”
Del Williams is a technical writer based in Torrance, California.
