It makes its way through the mouth and nose and into the smallest branches of the lungs – insidiously entering the body. “It” is welding fume. If you don’t use adequate protection, it spreads across the entire workshop and you breathe in the particles even when you’re not welding. So that’s the bad news. The good news is that targeted protective measures – first and foremost effective welding fume extraction – can significantly reduce exposure to welding fume.
Welding fume is among the greatest risks facing welders. In 2017, the WHO’s International Agency for Research on Cancer (IARC) classified it as “carcinogenic to humans” – underlining that the topic of welding fume protection deserves the utmost attention. When we talk about welding fume, we are referring to a mixture of gases and particles generated during welding. We distinguish between these substances as follows:
- Substances harmful to the respiratory tract and lungs, such as iron oxide, aluminum oxide, magnesium oxide, and titanium dioxide
- Toxic or toxic-irritating substances such as fluorides, manganese oxides, zinc oxide, carbon monoxide, nitrogen oxides, copper oxide, lead oxide, and ozone
- Carcinogenic substances such as chromium(VI) compounds, beryllium oxide, nickel oxides, and ozone
The principal reason why welding fume particles are so dangerous is their small size, which allows them to penetrate deep into the lungs. The fact that health problems caused by welding fumes often only become apparent years or even decades later makes them particularly treacherous. If welders are exposed to high concentrations of welding fume particles and do not adequately protect themselves, they may experience such symptoms as headaches and nausea in the short term. However, in the long term, welding fume exposure can result in chronic respiratory and lung diseases as well as damage to the nervous system or, in the worst case, even cancer.
Several facts influence the volume of hazardous substances present in welding fume. These include the parent material as well as the filler metals – rod and wire electrode – and the shielding gas. The filler metals used generate the majority of the welding fume particles.
The various welding methods and processes themselves also have a significant influence on the harmful substances in welding fume. Manual arc welding and MIG/MAG welding, for example, generate more fumes than TIG welding, which is why particularly high levels of protection must be ensured here. The lowest health risk from welding fume arises in automated welding processes that are carried out in suitably equipped welding cells by robots – for example cobots. Here, the protective enclosure with automatic anti-glare protection and the integrated extraction system also optimally protect those individuals around the welding cell from welding fume. Another option for reducing the risk posed by welding fume is to employ the CMT process (cold metal transfer). This welding process is characterised by very low heat input and low amounts of welding spatter – and consequently also by the generation of fewer welding fumes.

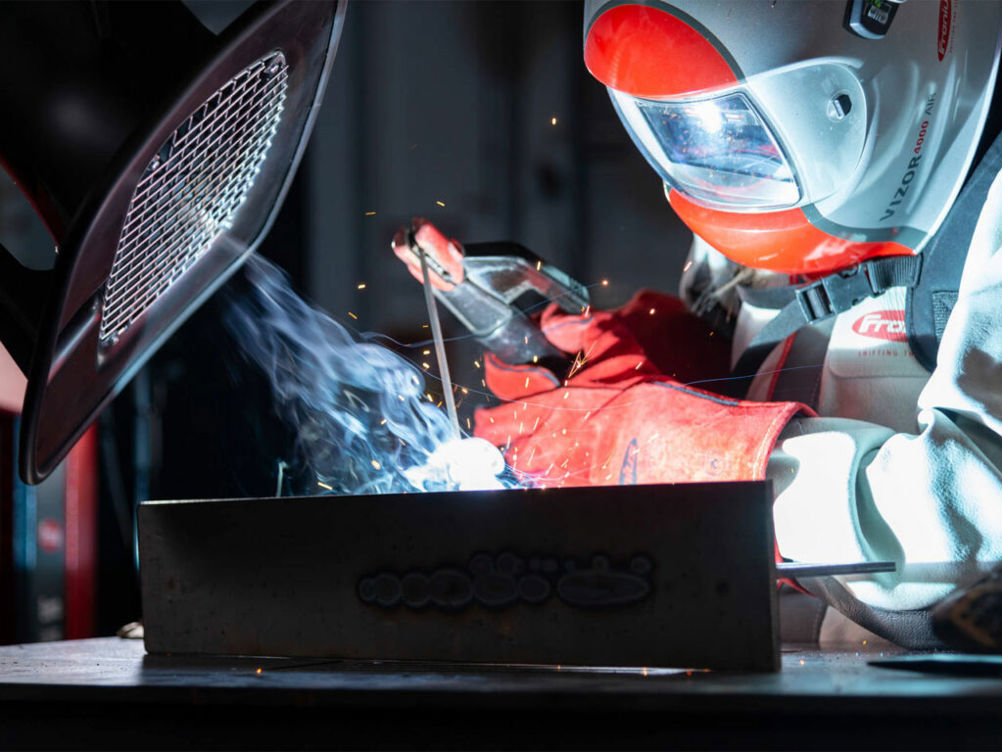

Arc welding generates intense welding fumes, meaning that a particularly high degree of protection is key here.
The solution? Welding fume extraction
It is not always possible or desirable to change the welding method or process for various reasons. So the question is – what can you do as a welder to protect yourself from welding fume? There are several measures that are ideally always combined, including wearing a welding helmet with powered air-purifying respirator and implementing effective welding fume extraction by means of extraction systems and fume extraction torches. The latter in particular are highly effective in welding fume protection: when used in combination with extraction systems, they ensure precise extraction directly at the point where the welding fume is being generated. Welding fume is thus captured before it can spread at all – thereby protecting not only the welders themselves, but everyone else in the vicinity too.
Alongside maximum protection, welding fume extraction systems and extraction torches should offer one thing above all: ease of use. After all (as with other protective products) if they are unwieldy, impractical, and complicated, they are generally used less often. Which ultimately means less protection. As such, when selecting a welding fume extraction system, pay attention not only to the extraction capacity, but to convenience and ease of use too. That will allow you to concentrate fully on your welding work and remain well-protected at all times. When it comes to fume extraction torches, ergonomics are also vital. Their slightly larger design in comparison to conventional welding torches must not come at the expense of the health, safety, and performance of the welder.
Fronius Exento extraction systems are said to satisfy all of these requirements.
This article, which has been edited, was originally written by Katja Deinhofer and published on https://blog.perfectwelding.fronius.com/en/why-welding-fume-extraction-is-so-important/
