Many industrial applications require fast, homogenous mixing of materials, including adhesives, inks, cosmetics, and pharmaceuticals. It could be the combination of materials of differing viscosities, or the addition of solids such as conductive powders, catalysts, phosphors, fillers or even nanoparticles, into liquids or pastes. There are multiple methods of mixing materials. One common approach is contact mixing, which can range from stirring with a stick, using glass stirrers and beakers, electric stirrers with blades or paddles, or magnetic stirrers.
Manufacturers usually look to change their mixing process if they identify specific issues or areas for improvement. It might be to reduce the time or number of steps required; a mixing process could require material to be weighed into a cup, mixed, degassed, decanted into a syringe or other dispensing technology, and then perhaps even degassed again. Alternatively, there may be problems with quality and repeatability; the paddle or stirrer may introduce air into the mixture, homogeneity may vary between operators or contamination might be introduced between batches.
An alternative to contact mixing is planetary centrifugal mixing. The non-contact mixing action of this technology combines rotation and revolution within a set radius to achieve a fast, fully homogeneous mix. These mixers can mix, disperse and degas materials in seconds to minutes in the user’s own product container. Contrary to contact mixing, they also tend to remove air rather than cause it to be entrapped.
When determining the possible ROI of new mixing equipment, the first step is to understand the intricacies of the mixing process for your specific application and determine exactly what it is you wish to achieve. Building up a clear picture of the current process will help determine the most suitable equipment for you to trial but will also help you understand the indirect cost savings, as well as the more obvious direct ones.

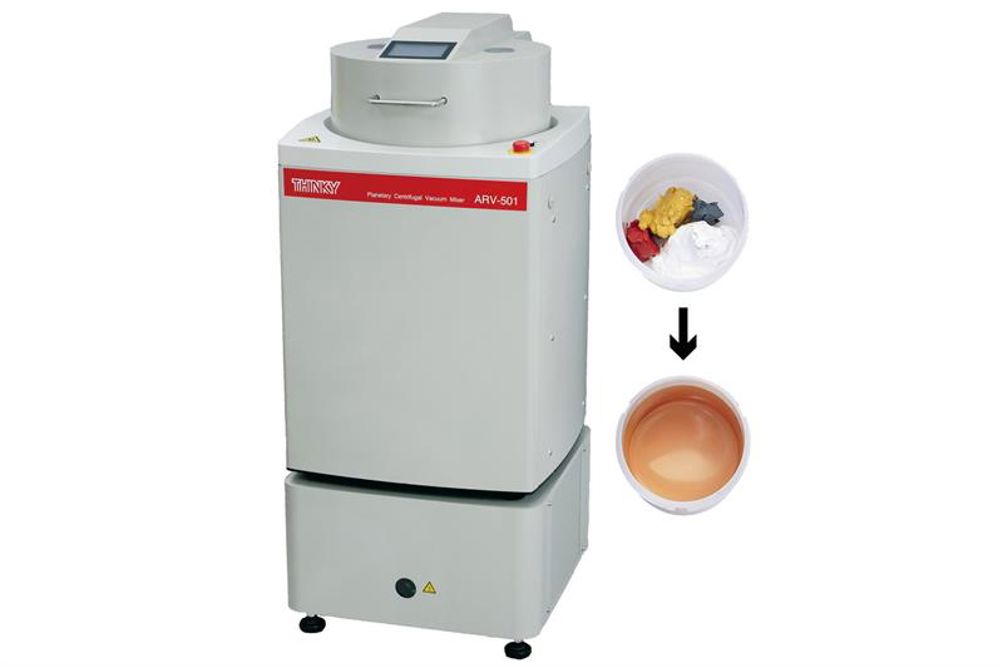

One benefit of using a planetary centrifugal mixer, such as a THINKY Mixer, is that it can remove steps -- and therefore time and labour -- from the process. THINKY Mixers enable you to simultaneously mix, disperse and degas materials in jar, beaker, syringe, tube or cartridge, and so can free up time that would otherwise be spent manually mixing, degassing, filling and decanting. Because material does not have to be decanted between containers and the process is non-contact, it reduces the amount of wasted material left in a previous vessel or on a paddle or stirrer, greatly reducing cleaning the requirements and meaning there is a minimal risk of cross contamination between batches.
THINKY Mixers enable precise and repeatable control of the mixing process, which can lead to improved formulation quality, reduced human error and less variation between batches due to operator technique or skill. Process variables like time and speed are programmable and stored in “recipes”, so the mixing is the same each time.
Ongoing costs and other considerations
Understanding the requirements of the process and what steps are required is central to equipment choice; there are different types of planetary mixer, offering a range of functionalities. Some are pure mixing models; some perform both mixing and removal of visible bubbles; and some can both mix and degas to a high level under an integral vacuum — and remove micro-bubbles down to 100 microns diameter. Opting for a machine with more functionalities than you need will increase upfront costs.
Assessing both the volume and frequency of the mixing process are important in determining firstly which mixer to invest in and which consumables you will need. A machine capable of mixing larger volumes will be more expensive, so it may be more cost effective to mix materials in smaller batch sizes. For example, if you are mixing 500g of material, splitting it into five batches that fit into a smaller machine might offer better ROI.
Weighing up all the indirect costs from the process, labour and quality factors against the cost of the mixer can help to determine the payback period and the ROI of the equipment. Like all mixing processes, a THINKY Mixer will require some ongoing expenditure in mixing containers. There is a trade-off of disposable versus reusable containers, remembering to factor in cleaning time for the latter. For critical processes, the risk of cross contamination may mean you are required to use single use containers. The ultimate solution would be to mix in the final packaging container, which is a feasible option if required.
Mixer choice will depend on volume and features, that is, integral vacuum. A good supplier will have the ability to address your mixing challenge by doing laboratory evaluations and demonstrations with you. Their previous experience will help you develop the best combination of mixing parameters for an optimal outcome.
The return-on-investment calculations will include time savings (both in mixing and in process preparation and clean-up), and mixed quality including consistency and bubble-free. Sometimes, the combination of mix ratios, viscosities, liquids, pastes and solids cannot be mixed successfully any other way.
